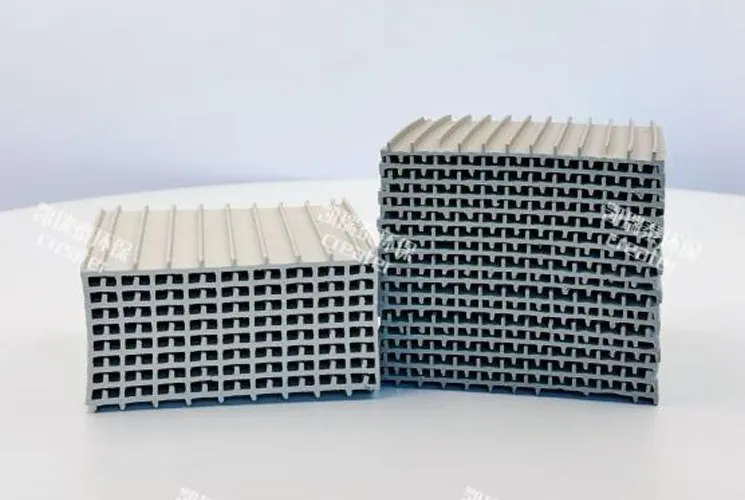

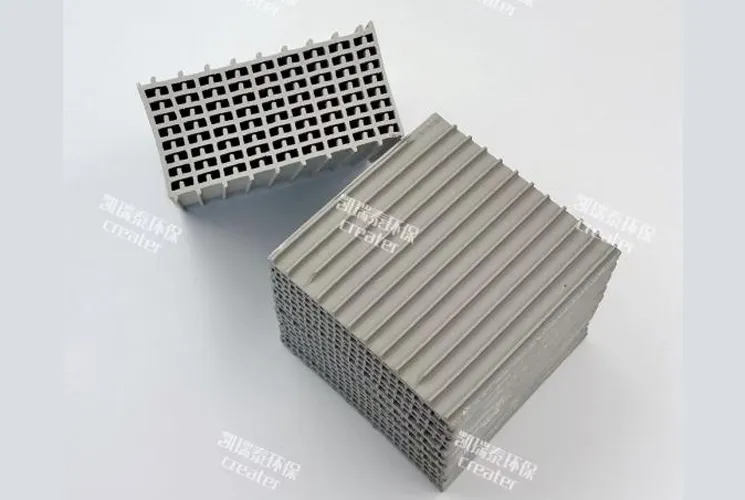

Plate-Type Ceramic Heat Storage

Name: Plate-Type Ceramic Heat Storage
Brand: Foshan Creater Environmental Protection Technology Co., Ltd.
Availability: InStock

Plate structure, low pressure drop.

CONTACT NOW >



Specifications of Plate-Type Ceramic Heat Storage

chemical composition

Component	Value
Al₂O₃	20~26
SiO₂	65~75
K₂O + Na₂O	< 3
Fe₂O₃ + TiO₂	1~2
Others	< 3

Physical properties

Item	Unit	Value
Bulk Density	g/cm³	2.2~2.5
Thermal Expansion Coefficient	(×10⁻⁶ K⁻¹) (20~1000℃)	≤ 6.5
Specific Heat	(J/kg·K) (20~1000℃)	950~1100
Thermal Conductivity	(W/m·K) (20~1000℃)	1.8~2.2
Thermal Shock Resistance	℃	400
Softening Temperature	℃	1200
Water Absorption	%	≤ 0.5
Compressive Strength	MPa	≥ 2
Acid Resistance	%	≥ 98

Product Specifications

Model	Unit	creat-200	creat-180	creat-160	creat-125
Main Specifications	mm	305×305×102 mm / 102×102×102 mm
Specific Surface Area	m²/m³	680	620	530	430
Bulk Density	kg/m³	1060	980	870	800

Specifications of Plate-Type Ceramic Heat Storage

Features of Plate-Type Ceramic Heat Storage

Large capacity, corrosion-resistant, high regularity
