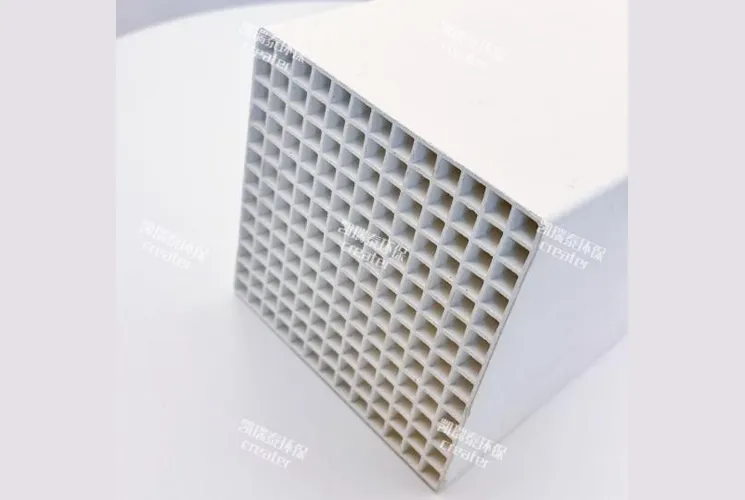

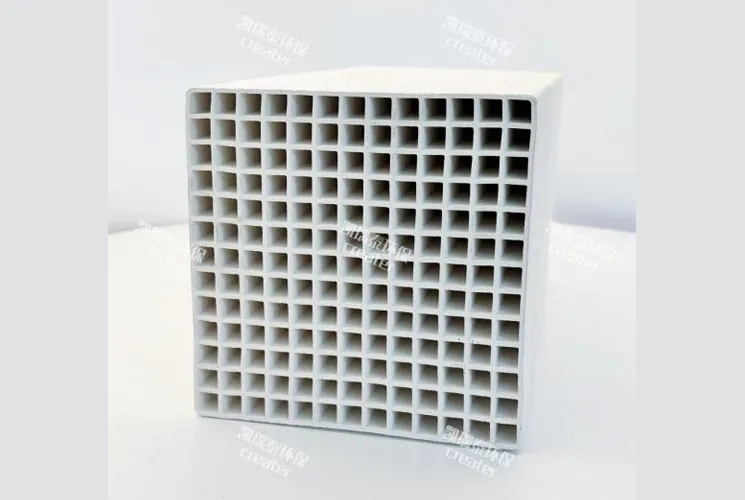

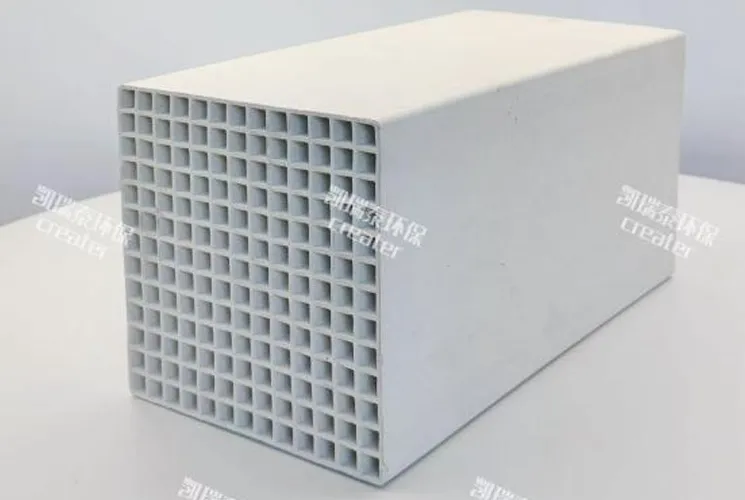

High-Performance Honeycomb Ceramic Heat Storage

Name: High-Performance Honeycomb Ceramic Heat Storage
Brand: Foshan Creater Environmental Protection Technology Co., Ltd.
Availability: InStock

High heat storage density, thermal shock resistant, ideal for industrial furnace energy saving.

CONTACT NOW >



Sepcifications of High-Performance Honeycomb Ceramic Heat Storage

Size (mm)	Cell Density	Inner Wall Thickness	Outer Wall Thickness	Pore Width	Open Porosity	Specific Surface Area (m²/m³)
150×150×300	25×25	0.95mm ± 0.15	1.8mm ± 0.15	4.8–5.0mm	67%	544
150×150×300	32×32	0.85mm ± 0.15	1.8mm ± 0.15	3.8–4.0mm	69%	710
150×150×300	40×40	0.65mm ± 0.15	1.8mm ± 0.15	2.9–3.1mm	64%	853
150×150×300	43×43	0.63mm ± 0.15	1.8mm ± 0.15	2.7–2.9mm	64%	920
150×150×300	50×50	0.50mm ± 0.15	1.2mm ± 0.15	2.3–2.5mm	64%	1067
150×150×300	60×60	0.45mm ± 0.15	1.1mm ± 0.15	1.9–2.1mm	64%	1280

Features of High-Performance Honeycomb Ceramic Heat Storage

Adopting a unique molding process to overcome technical difficulties such as molding deformation and irregularity, the outer wall of the heat storage body is thick and the inner wall is thin.

The thickness of the outer wall ensures the strength of the product and is not easily damaged due to external factors such as installation; Thin inner walls can improve heat transfer rates and achieve higher thermal efficiency.

Contact Us for Bulk Orders & Custom Solutions

As your trusted environmental consultant, we offer high-efficiency products, customized solutions, and exclusive partnership benefits. Contact us today to request a quote!
