  • Extruded Honeycomb Molecular Sieve
  • Extruded Honeycomb Molecular Sieve
  • Extruded Honeycomb Molecular Sieve

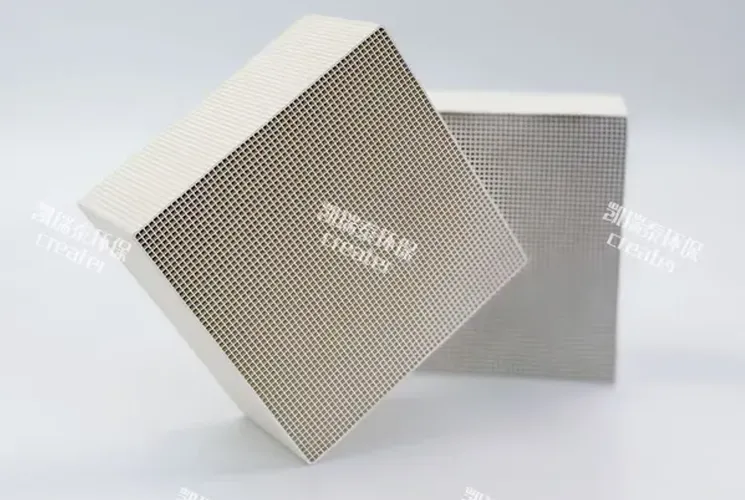

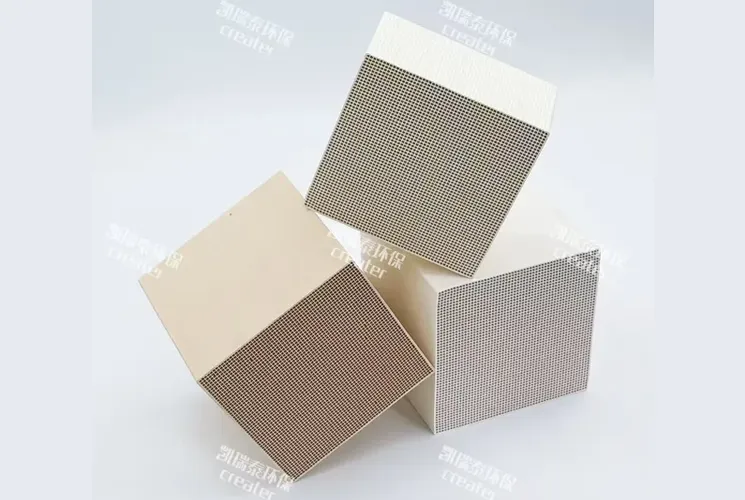

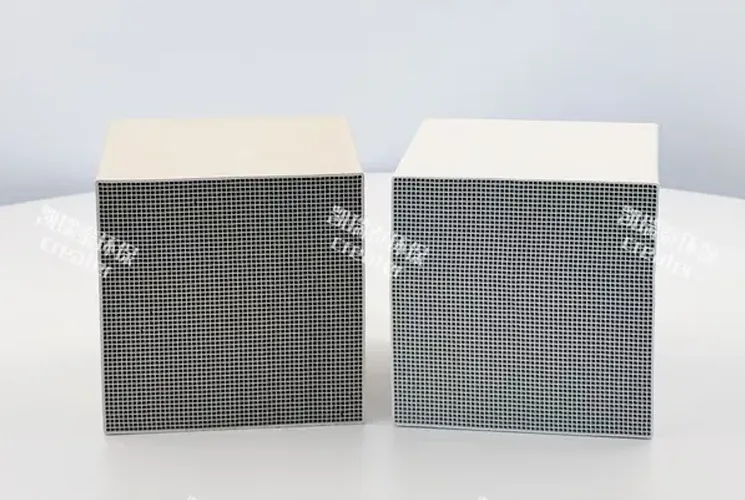

Extruded Honeycomb Molecular Sieve

High-silica hydrophobic zeolite integrally extruded, high-temperature resistant and non-combustible, thorough regeneration at high temperatures.

CONTACT NOW >

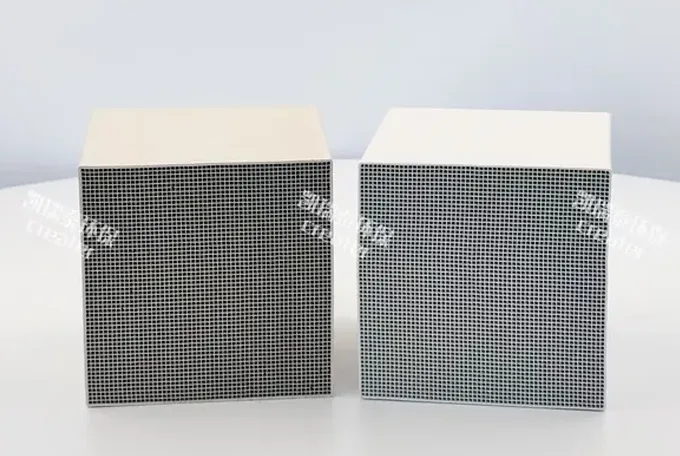

Specification of Extruded Honeycomb Molecular Sieve


Specifications
100mmx100mmx100mm
100mmx100mmx50mm
Customized on demand.



ItemProperty
Overall Dimensions (mm)100×100×100
Cell Density (cells/cm²)16–25
Cell Wall Thickness (mm)0.4–0.5
Longitudinal Compressive Strength (MPa)≥ 0.7
Transverse Compressive Strength (MPa)≥ 0.2
Density (g/cm³)0.35–0.50
Specific Surface Area (m²/g)< 900
Purification Efficiency (%)> 90%
Operating Temperature (℃)< 600
Adsorption Air Velocity (m/s)0.8–1.2
Adsorption Residence Time (s/m)0.6–0.9
Desorption Air Velocity (m/s)> 0.3
Desorption Temperature (℃)> 200


Specification of Extruded Honeycomb Molecular Sieve

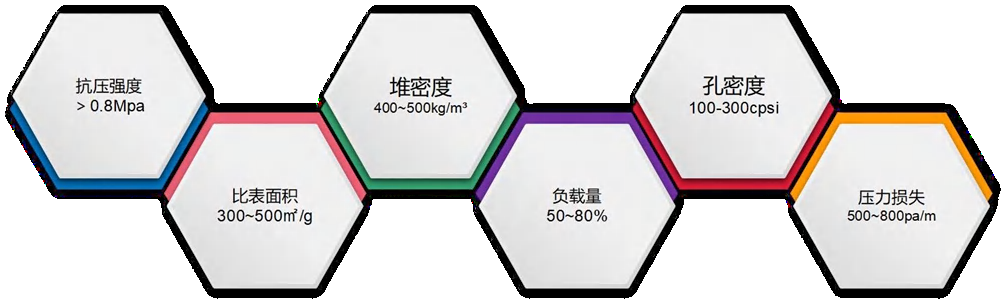

Features of Extruded Honeycomb Molecular Sieve

The overall molecular sieve honeycomb is made of high silica hydrophobic molecular sieves as raw materials and produced using extrusion technology. The pore size of the molecular sieves is uniform and the water resistance is good. Different molecular sieve honeycomb products can be selected based on the characteristics of different types of organic waste gases to meet the requirements of working conditions.


Molecular sieves are inorganic non-metallic materials of aluminosilicates, which have high temperature resistance and non flammability characteristics, eliminating the risk of equipment fire. At the same time, they can increase the normal desorption temperature to 180 ℃~220 ℃, making desorption more thorough. It can undergo regular regeneration at a high temperature of 350 ℃ and has reliable performance.


Features of Extruded Honeycomb Molecular Sieve


Contact Us for Bulk Orders & Custom Solutions
Contact Us for Bulk Orders & Custom Solutions
As your trusted environmental consultant, we offer high-efficiency products, customized solutions, and exclusive partnership benefits. Contact us today to request a quote!
*
*
*
