Ceramic Saddles

Name: Ceramic Saddles
Brand: Foshan Creater Environmental Protection Technology Co., Ltd.
Availability: InStock

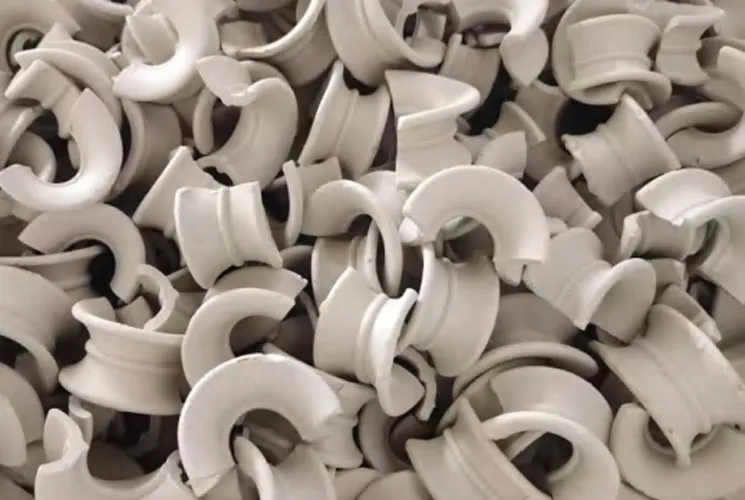

Ceramic saddle ring is a semi-circular structure with an open opening filling material. There is an annular reinforcing rib in the middle to avoid overlapping and shielding between the fillers, resulting in a high porosity and improved effective utilization of the mass transfer surface. It has good liquid distribution performance.

CONTACT NOW >



Physical Properties of Ceramic Saddles

Specification	1/2"	3/4"	1"	1.5"	2"	3"
Size (inch)	1/2"	3/4"	1"	1.5"	2"	3"
Size (mm)	13	19	25	38	50	75
Width (mm)	10	14	20	30	40	57
Length (mm)	20	28	38	60	80	114
Thickness (mm)	2	3	4	4.5	5.5	8.5
Packing Quantity (pcs/m³)	355K	111K	60K	20K	8300	2400
*Note*	K=1000pcs
Bulk Density (kg/m³)	730	700	650	620	580	560
Void Fraction (%)	68	69	70	74	75	77
Specific Surface Area (m²/m³)	430	350	254	180	120	92
Water Absorption (%)	< 0.5
Acid Resistance (%)	> 99
Max. Working Temperature (°C)	1100
Thermal Conductivity (W/m·K)	0.9–1.0
Chemical Composition	SiO₂			> 73%
	Al₂O₃			18–26%
	Fe₂O₃			< 1.0%
	CaO			< 0.5%
	MgO			< 0.5%
	K₂O + Na₂O			2–4%
	Other			< 1%
